Client Settings

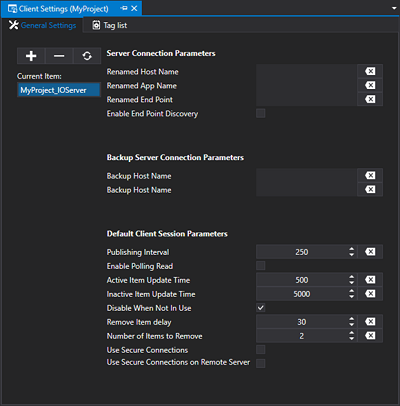

This settings window can be accessed through the "Client Configuration > Client Settings" resource from the project tree and allows you to define the Client's connection parameters towards the Server.

It is also possible to redefine connection parameters such as the name of the Server  to connect to or the name of the Application if renamed.

Server Connection Parameters

Renamed Host Name

This parameter consents the name of the Server, which the Client is to connect to, to be entered here.  It will be used when the Server is remote, meaning that when the Client and Server are running on different machines.  At runtime, the client's connection endpoint will be automatically be redefined by substituting the “localhost” with the name of the Server indicated in this parameter.

Renamed App Name

This parameter is used when changing the Project's Application Name after having already assigned Tags.  In the condition, the new Application Name is entered here, while the name of the name of the set of parameters being edited should have the old Application Name.  In this way, at runtime, the connection endpoint to the Server will be redefined by substituting the old Application Name with the new one.

Please refer to information on "Renamed App Name" in this page

Scheduler Server

In cases where the client needs to provide the use of schedulers, you will need to configure an dedicated app name as follows:

1. Click the '+' icon to add a new AppName;

2. Set the AppName with the name found in the Scheduler Server's "Appliclation Name" property;

3. Set the "Renamed Host Name" property with the name of the PC in which the Movicon.NExT Server project is running.

Renamed End point

This field is used to define the whole endpoint that the Client should use to connect to the Server.  In this case, the “Server Hostname Server” and “Application Name” parameters will no longer be necessary and ignored.  An example of an endpoint to enter would be:

net.tcp://ServerName:62846/Project1_IOServer

net.tcp://192.168.0.49:62846/Project1_IOServer

Enable End point Discovery

Enabling this option will enable the Client to connect to the Server using any one of the transports published by the Server in cases where the transport defined in the default endpoint is no longer available.  Supposing for example that while in project design mode, only the “net.pipe” transport is being used but when in runtime the Server only exposes the “net.tcp” transport, the Client will not be able to connect to the Server.  By enabling the "Enable Endpoint Search" option, the client will then be able to use the "net.tcp" transport to connect to the Server.

Backup Server Connection Parameters

Backup Host name

This parameter is used to enter the name of the Backup Server to which the Client is to connect to in cases where the main Server Host name cannot be reached.  It is used when the Server is remote in a situation where Client and Server are running on different machines.

Backup App Name

This parameter is used to enter the name of the Backup Application to which the Client is to connect to in cases when the main Server Hostname is unreachable.

Default Client Session Parameters

Publishing Interval

This value, which the Client passes to the Server when the Session is opened, determines the time with which the Server sends update notifications of tag subscribed by the Client.

Enable Polling Read

This property forces the Driver to read Tags with polling Tasks instead of using OPC UA Subscriptions.

In Use Tags Update Time

This value determines the time with which the Server keeps Active Tags updated through the communication driver by setting it as the minimum reading task execution time.

Active Tag are those that that the Client has subscribed to the Server and that are currently in use on the Client n the following situations:

• In use in visible Screens.

• In use in invisible Screens kept in memory (Keep in Memory option).

• In use in invisible Screens pre-loaded at startup (Pre-loaded Screen List option")

Not in Use Tags Update Time

This value determines the time with which the Server keeps Inactive Tags updated through the communication driver by setting it as the minimum reading task execution time.

Inactive Tag are those that that the Client has subscribed to the Server but are not currently in use in any visible Screen or in memory.

Disable When Not in Use

When enabling this property, the "Item Not Active" state is set when the Tag is not in use in the Client.

Remove Item Delay

This parameter defines the delay time that when expires will remove the subscribed Inactive OPC UA Items according the number of items set in the "Number of Items to Remove" parameter.  Time is expressed in seconds.

Number of Items to Remove

This is used to set the number of inactive OPC items to remove at each time interview defined in the "Remove Item Delay".

Use Secure Connections

Enabling this option, the Client will connect to Server connections declared safe by the appropriate certificates whether they be local or remote.  However, in cases where the Server does not expose safe connections, it will expose the next available connection even if not safe.

Use Secure Connections on Remote Server

Enabling this option, the Client will connect only to Server connections declared safe when the Server does not belong to the same local Client network.  However, in cases where the Server does not expose safe connections, it will expose the next available connection even if not safe.

Using Child Projects in distributed Client-Server Architecture

The Child and Parent technology is available in Movicon.NExT Client-Server project network architectures. This technology allows you to create projects distributed in a network that automatically connect to a referenced Server.

Please consult the chapter on Movicon.NExT Child Projects for further information.
