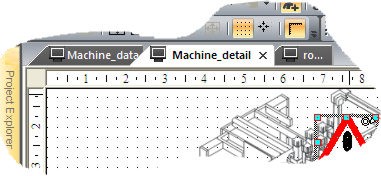

Grids can be applied to Movicon Screen windows to make work for graphical interface designers easier particularly when using alignment. To enable or disable the Grid display, simply use the appropriate command found on the "Aligning Bar", or use the "Grid Settings..." item from the "Layout" menu.
In addition to the commands to make the Grid visible or invisible, there is another command which enables the alignment of objects within the Grid. This command can also be found on the "Aligning Bar", or from the "Grid Settings..." item from the "Layout" menu. This menu can also be used to set the Grid's sizes in pixels being the space you wish to obtain between one point of the Grid and the next.
Show Grid
Selecting this will display the grid on screen.
Selecting this will align the screen's objects to the grid according to the grid's resolution.
Size X (pixels)
The distance in pixels between one point on the grid's horizontal axis and the next is set in this field. The lower the value, the more precise the resolution will be.
Size Y (pixels)
The distance in pixels between one point on the grid's vertical axis and the next is set in this field.
The lower the value, the more precise the resolution will be.
