Serial Cable for MS ActiveSync and Windows Mobile Device Center

The communication serial cable to be used for connecting the desktop PC to the target device using MS ActiveSync or Windows Mobile Device Center is as follows:

Nevertheless, it is always best to refer to the device's manufacturer's specifications if available.





Serial Cable with  9 pin (female) - 9 pin (female) connector

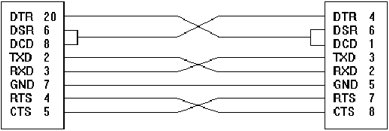

Serial Cable with 25 pin (male) - 9 pin (female) connector
