The Scheduler Viewer Object

The Scheduler Server can be displayed and edited by the operator during runtime by using the grahical Scheduler Viewer object located in the Viewer category in the screen toolbox.

The Scheduler Viewer object can be inserted on screen and configured as pleased through its properties as described in the topic relating to Graphical Screen displays.

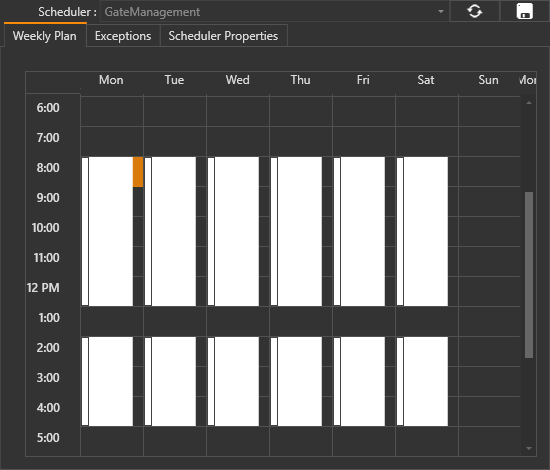

This is an example of the Scheduler Viewer object that can be inserted on screen.

By using this graphical object, the operator can set scheduled events - where consented in the properties by the programmer - for each scheduler server object.   The settings entered by the operator at runtime will have priority over those times set in object's properties in edit mode.
