Maps in WebHMI

The WebHMI applications support GeoScada technology to allow browsers to display screens based on geographical maps with overlaying dynamic project information according to the features described in the chapter on GeoScada.

The Maps’ functionality must always be configured on the WebHMI Server device by taking into consideration that the system may need to configured accordingly.

Maps managed in WebHMI up to version 4.1 are in vectorial format and should be downloaded, prepared, and installed on the server device as described below.  This solution does not require an internet connection to a GeoMap services provider.  Local server systems can be used instead without needing to connect to GeoMap service providers.

The internet connection can be used starting from version 4.2 to connect to a GeoMap service provider in the same way done in the Movicon.NExT Desktop version.

Vectorial Map Configuration for WebHMI

To customize vectorial maps in WebHMI you will need to:

1. Download an existing map of the areas available from https://download.bbbike.org/osm/ .  If you cannot find the specific area you are looking for, try this other website https://extract.bbbike.org/ instead. You must download the selected area in OSM format.

2. Convert the OSM file to the geojson format.  This can be done in your PC or on-line. Please refer to the GDAL program manual for converting files off-line: https://gdal.org/download.html#current-releases.  Below is an example of commands used for converting the file:

• ogrinfo <downloaded_file_name>.osm

This command returns the available layers within the file, such as:

Had to open data source read-only.

INFO: Open of `.osm'

      using driver `OSM' successful.

1: points (Point)

2: lines (Line String)

3: multilinestrings (Multi Line String)

4: multipolygons (Multi Polygon)

5: other_relations (Geometry Collection)

• ogr2ogr -f GeoJSON map_points.json < downloaded_file_name >.osm points

• ogr2ogr -f GeoJSON map_lines.json < downloaded_file_name >.osm lines

• ogr2ogr -f GeoJSON map_multilinestrings.json <downloaded_file_name>.osm multilinestrings

• ogr2ogr -f GeoJSON map_multipolygons.json <downloaded_file_name>.osm multipolygons

• ogr2ogr -f GeoJSON map_other_relations.json <downloaded_file_name>.osm other_relations

As an alternative, you can use an on line conversion service by first exporting the maps from “Openstreetmap” as “*.osm” files for example..

3. To edit the downloaded maps, install the QGIS software (https://www.qgis.org/en/site/forusers/download.html) to display and edit/filter the previously created layers in order to add a new layer (such as a grey background for example). When a filter is applied to a layer (such as “buildings” = ‘yes’), this layer can then be saved with a new name.

4. Copy the.json files to the webhmiserver’s wwwroot (C:\Program Files\Progea\Movicon.NExT x.x\WebHMIServer\wwwroot), and possibly in a subfolder like in our example: .../openstreetmap/

5. Edit the appsettings.json file within the C:\Program Files\Progea\Movicon.NExT 4.2\WebHMIServer path to use it and specify other parameters such as:

"WebNExTHMISettings": {

    "Project": "",

    "ProxyPath": "",

    "LoginRequired": false,

    "ShowDebugWindow": false,

    "ForceMainPageAR": false,

    "ARMappingProject": null,

    "HttpListeningPort": 5000,

    "HttpsListeningPort": 5001,

    "MaximumParallelInvocationsPerClient": 5,

  "mapBounds": "[-4.69, 54.09, -4.60, 54.06]",

  "mapZoomFactor": 1,

  "mapMaxZoomFactor": 256,

  "mapLayers": "[{\"dataSource\": \".\/openstreetmap/landcover.json\", \"hoverEnabled\": false}, {\"dataSource\": \".\/openstreetmap/buildings.json\", \"hoverEnabled\": false},{\"dataSource\": \".\/openstreetmap/roads.json\", \"hoverEnabled\": false, \"label\": {\"enabled\": true, \"datafield\": \"name\"}}]"

  }

}

These parameters are used to do the following:

• mapLayers: Allows you to declare a string array of the filename of the layer to be used.

• mapBounds: Allows you to define the geographical area displayed at startup.

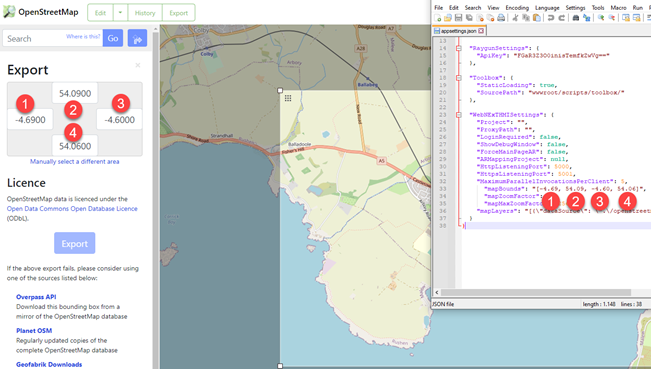

Clicking on the export button will give you the possibility to display/edit the coordinates of the points that define the area to be exported.  These points can be used within the configuration file to define the displayed area.

• mapZoomFactor: Specifies a number that is used as the intial map zoom factor.

• mapMaxZoomFactor: Specifies the maximum map zoom factor.

When finished, set the project’s “Startup Page Type” to Geo Page, and deploy the project using the project’s CreateWebHMI (SVG/HTML5) command.

Raster Map Configuration with Service Provider connection

As mentioned beforehand, internet can now be used starting from version 4.2 to connect to a GeoMap services provider in the same done in the Movicon.NExT Desktop version.

This solution offers more detailed maps and does not require any installation or downloading but only  an internet connection with adequate broadband to the provider.

To use a different map provider from the one predefined, such as Mapbox for example, you will need to register on their website to receive an accessToken.   Once the token has been generated, insert it in the two parameters contained in the appjsettings.json file:

"MapViewTilesURL": "https://api.mapbox.com/styles/v1/{id}/tiles/{z}/{x}/{y}?access_token={accessToken}",

"MapViewTilesOptions": "{\"accessToken\": \"theAccessTokenRetrievedFromWebsite\",

\"id\": \"mapbox/streets-v11\"}"
